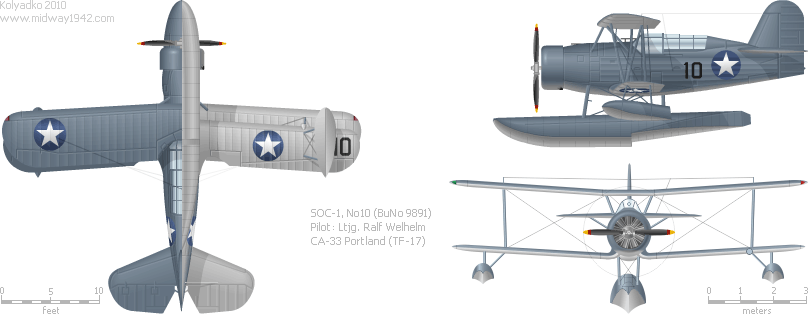

| Curtiss SOC Seagull | SCOUT-OBSERVATION SEAPLANE | |
| . | . | Model SOC-1* | . | ||||||||||
| Length: | 31 ft 8 in | 9.65 m | Power Plant: | Pratt & Whitney R-1340-22 | Fuel Capacity: | 170 gal | 644 L | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height: | 14 ft 1 in | 4.30 m | Military Power: | 550 hp | 410 kW | Patrol Range: | 735 nm | 1360 km | |||||
| Wingspan: | 36 ft 0 in | 10.97 m | Power/Weight: | 0.10 hp/lb | 0.24 hp/kg | Service Ceiling: | 15,000 ft | 4572 m | |||||
| Wingarea: | 348 sq ft | 32.33 m2 | Max Speed: | 133 kts | 246 km/h | Forward Guns: | 1×.30 (7.62 mm) | ||||||
| Empty Weight: | 3,508 lb | 1591 kg | Cruise Speed: | 100 kts | 182 km/h | Rearward Guns: | 1×.30 (7.62 mm) | ||||||
| Gross Weight: | 5,153 lb | 2337 kg | Rate of Climb: | 850 ft/min | 260 m/min | Bomb Load: | Up to 650 lb (295 kg) | ||||||
| * Specifications of the floatplane variant | |||||||||||||
