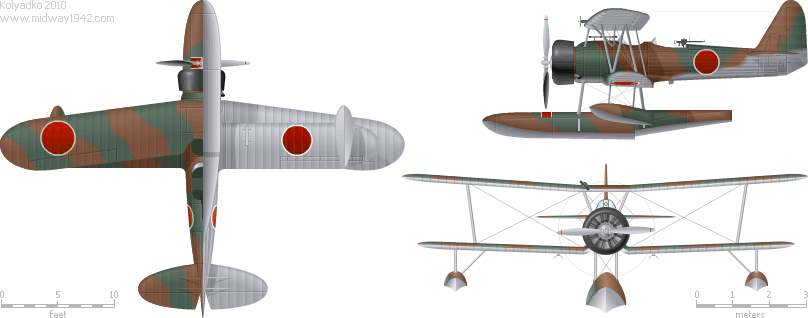

| Nakajima Type 95 E8N, 中島九五式 | RECONNAISSANCE SEAPLANE, 水上偵察機 | |
| . | . | Model 12 (E8N2) | . | ||||||||||
| Length: | 28 ft 11 in | 8.81 m | Power Plant: | Nakajima Kotobuki 2 KAI 2 | Fuel Capacity: | ? | ? | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height: | 12 ft 7 in | 3.84 m | Military Power: | 630 hp | 470 kW | Patrol Range: | 485 nm | 900 km | |||||
| Wingspan: | 36 ft 0 in | 10.98 m | Power/Weight: | 0.15 hp/lb | 0.33 hp/kg | Service Ceiling: | 23,845 ft | 7270 m | |||||
| Wingarea: | 285 sq ft | 26.5 m2 | Max Speed: | 162 kts | 300 km/h | Forward Guns: | 1×.303 (7.7 mm) | ||||||
| Empty Weight: | 2,904 lb | 1320 kg | Cruise Speed: | 100 kts | 185 km/h | Rearward Guns: | 1×.303 (7.7 mm) | ||||||
| Gross Weight: | 4,180 lb | 1900 kg | Rate of Climb: | 462 ft/min | 141 m/min | Bomb Load: | Up to 132 lb (60 kg) | ||||||
