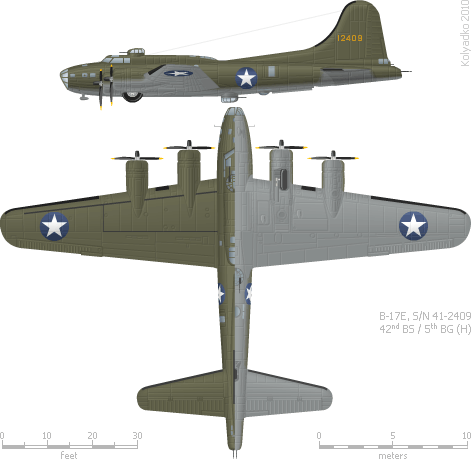

Model B-17E |
|
Manufacturer: |
Boeing Airplane Company |
| Length: |
73 ft 10 in |
22.25 m |
| Height: |
19 ft 2 in |
5.84 m |
| Wingspan: |
103 ft 9 in |
31.62 m |
| Wingarea: |
1,420 sq ft |
131.92 m2 |
| Empty Weight: |
33,279 lb |
15 095 kg |
| Gross Weight: |
40,260 lb |
18 262 kg |
| Fuel Capacity: |
2,490 gal |
9426 L |
| Power Plant: |
4× Wright R-1820-65 Cyclone
|
| . |
. |
|
Military Power: |
4×1200 hp |
4× 895 kW |
| Power/Weight: |
0.12 hp/lb |
0.26 hp/kg |
| Max Speed: |
276 kts |
512 km/h |
| Cruise Speed: |
196 kts |
364 km/h |
| Rate of Climb: |
1,200 ft/min |
366 m/min |
| Service Ceiling: |
35,000 ft |
10 668 m |
| Combat Range: |
2,867 nm |
5311 km |
| . |
. |
|
Guns: |
1×.30 (7.62 mm) forward
2×.50 (12.7 mm) sideward
2×.50 (12.7 mm) upward
2×.50 (12.7 mm) downward
2×.50 (12.7 mm) rearward
|
| Bomb Load: |
Up to 4,200 lb (1905 kg) |
| . |
|
|
 |
