  Aichi Type 0 E13A, RECONNAISSANCE SEAPLANE,

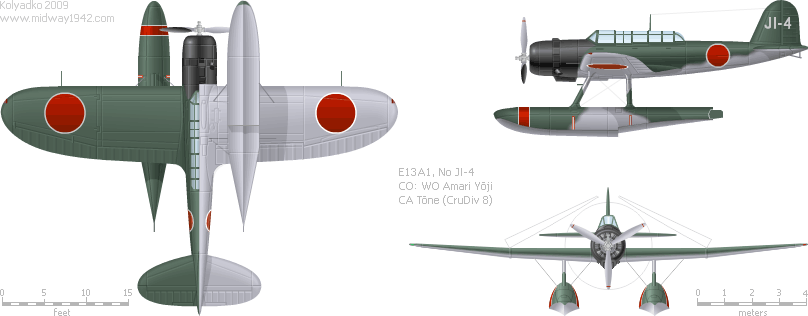

Aichi Type 0 E13A1
.     . Model 11 (E13A1)   .
Length: 37 ft 1 in 11.31 m Power Plant: Mitsubishi Kinsei 43  Fuel Capacity: ? ?
Height: 15 ft 5 in 4.70 m Military Power: 1,080 hp 810 kW Patrol Range: 1134 nm 2100 km
Wingspan: 47 ft 7 in 14.50 m Power/Weight: 0.13 hp/lb 0.30 hp/kg Service Ceiling: 28,500 ft 8700 m
Wingarea: 387 sq ft 36.0 m2 Max Speed: 203 kts 376 km/h Forward Guns: —
Empty Weight: 5,825 lb 2642 kg Cruise Speed: 120 kts 222 km/h Rearward Guns: 1×.303 (7.7 mm)
Gross Weight: 8,025 lb 3640 kg Rate of Climb: 1,610 ft/min 491 m/min Bomb Load: Up to 551 lb (250 kg)
