  Grumman F4F Wildcat CARRIER  FIGHTER

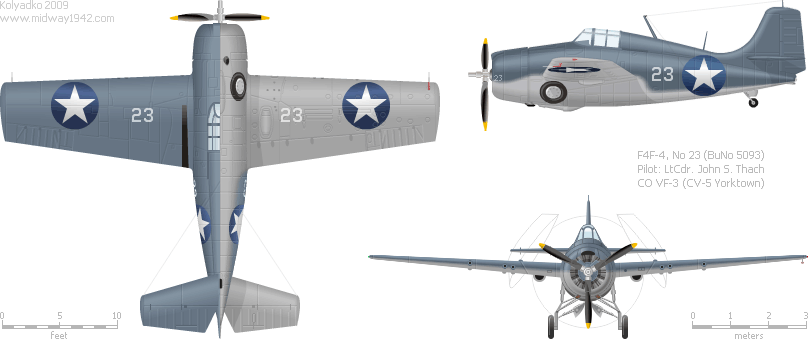

Grumman F4F-4 "Wildcat"
.     . Model F4F-4   .
Length: 28 ft 9 in 8.76 m Power Plant: Pratt & Whitney R-1830-86 Fuel Capacity: 144 gal 545 L
Height: 11 ft 10 in 3.60 m Military Power: 1200 hp 895 kW Combat Range: 670 nm 1240 km
Wingspan: 38 ft 11.6 m Power/Weight: 0.16 hp/lb 0.36 hp/kg Service Ceiling: 34,000 ft 10 363 m
Wingarea: 260 sq ft 24.0 m² Speed, SL: 247 kts 457 km/h Nose Guns: —
Empty Weight: 5,758 lb 2611 kg Max Speed: 278 kts 515 km/h Wing Guns: 6×.50(12.7 mm), 240 rds*
Gross Weight: 7,406 lb 3358 kg Cruise Speed: 128 kts 237 km/h Salvo Weight: 8.12 lb/sec 3.68 kg/sec
Wing Loading: 30 lb/ft² 147.8 kg/m² Rate of Climb: 1,950 ft/min 594 m/min Bomb Load: 2×100 lb (45.4 kg)
. * Allowance of ammunition, rounds per gun.
