| Mitsubishi Type 0 A6M, 三菱零式 | CARRIER FIGHTER, 艦上戦闘機 | |

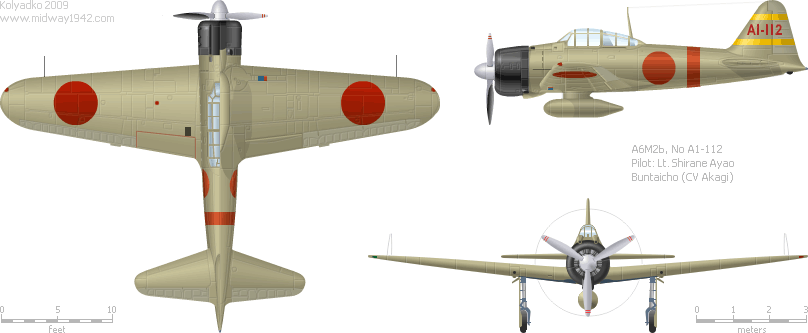

| . | . | Model 21 (A6M2b) | . | ||||||||||
| Length: | 29 ft 9 in | 9.06 m | Power Plant: | Nakajima NK1C Sakae 12 | Fuel Capacity: | 144 (231*) gal | 545 (875*) L | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height: | 10 ft | 3.05 m | Military Power: | 950 hp | 709 kW | Combat Range: | 1,675 nm* | 3100 km* | |||||
| Wingspan: | 39 ft 4 in | 12.0 m | Power/Wieght: | 0.18 hp/lb | 0.39 hp/kg | Service Ceiling: | 33,000 ft | 10 000 m | |||||
| Wingarea: | 241 sq ft | 22.44 m² | Speed, SL: | 245 kts | 454 km/h | Nose Guns: | 2×.303 (7.7 mm), 680 rds** | ||||||
| Empty Weight: | 3,704 lb | 1680 kg | Max Speed: | 287 kts | 534 km/h | Wing Guns: | 2×.787 (20 mm), 60 rds | ||||||
| Gross Weight: | 5,313 lb | 2410 kg | Cruise Speed: | 180 kts | 333 km/h | Salvo Weight: | 5.06 lb/sec | 2.29 kg/sec | |||||
| Wing Loading: | 22 lb/ft² | 107.4 kg/m² | Rate of Climb: | 3,100 ft/min | 942 m/min | Bomb Load: | 2×132 lb (60 kg) | ||||||
| . | * With external 87.2 gal (330 L) drop tank. ** Allowance of ammunition, rounds per gun. | ||||||||||||
