  Nakajima Type 97 B5N, CARRIER ATTACK PLANE, 艦上攻撃機

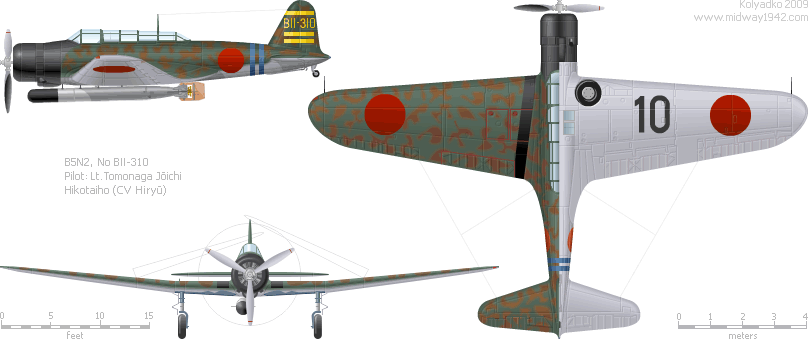

Nakajima Type 97 B5N2
.     . Model 12 (B5N2)   .
Length: 33 ft 9 in 10.3 m Power Plant: Nakajima NK1B Sakae 11 Fuel Capacity: 306 gal 1160 L
Height: 12 ft 2 in 3.70 m Military Power: 1000 hp 746 kW Combat Range: 530 nm 980 km
Wingspan: 50 ft 11 in 15.52 m Power/Weight: 0.12 hp/lb 0.26 hp/kg Service Ceiling: 27,100 ft 8260 m
Wingarea: 406 sq ft 37.70 m² Speed, SL: 178 kts 330 km/h Forward Guns: —
Empty Weight: 5,024 lb 2279 kg Max Speed: 205 kts 378 km/h Rearward Guns: 1×.303 (7.7 mm)
Gross Weight: 8,380 lb 3800 kg Cruise Speed: 140 kts 259 km/h Torpedo: 1×Type 91 1872 lb (849 kg)
Wing Loading: 20.6 lb/ft² 100.8 kg/m² Rate of Climb: 1,284 ft/min 390 m/min Bomb Load: Up to 1775 lb (805 kg)
