| Consolidated PBY Catalina | PATROL BOMBER, FLYING BOAT | |

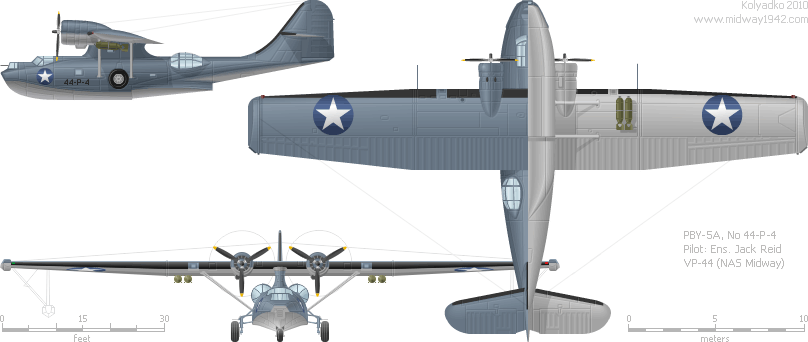

| . | . | Model PBY-5A | . | ||||||||||
| Length: | 63 ft 11 in | 19.5 m | Power Plant: | 2×Pratt & Whitney R-1830-92 | Patrol Range: | 2,176 nm | 4030 km | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Height: | 21 ft 1 in | 6.15 m | Military Power: | 2×1200 hp | 2× 895 kW | Service Ceiling: | 14,700 ft | 4480 m | |||||
| Wingspan: | 104 ft | 31.70 m | Power/Weight: | 0.07 hp/lb | 0.15 hp/kg | Forward Guns: | 1×.30 (7.62 mm) | ||||||
| Wingarea: | 1,400 sq ft | 130.0 m² | Max Speed: | 155 kts | 288 km/h | Rearward Guns: | 1×.30 (7.62 mm) | ||||||
| Empty Weight: | 20,864 lb | 9484 kg | Cruise Speed: | 100 kts | 185 km/h | Blisters Guns: | 2×.50 (12.7 mm) | ||||||
| Gross Weight: | 33,975 lb | 15 411 kg | Rate of Climb: | 880 ft/min | 268 m/min | Bomb Load: | up to 4,000 lb (1814 kg) | ||||||
| Wing Loading: | 24 lb/ft² | 119 kg/m² | Fuel Capacity: | 1,750 gal | 6620 L | Torpedo Load: | 2×Mk13 1,927 lb (874 kg) | ||||||
